PVC Semi Privacy Fence With Square Lattice Top FM-205

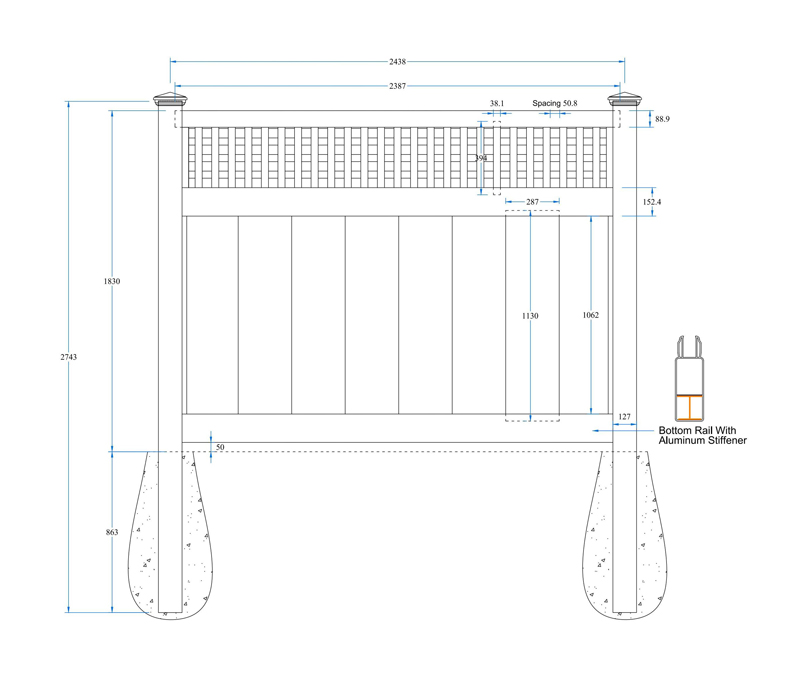

Drawing
1 Set Fence Includes:
Note: All Units in mm. 25.4mm = 1"
| Material | Piece | Section | Length | Thickness |
| Post | 1 | 127 x 127 | 2743 | 3.8 |
| Top Rail | 1 | 50.8 x 88.9 | 2387 | 2.0 |
| Middle Rail | 1 | 50.8 x 152.4 | 2387 | 2.0 |
| Bottom Rail | 1 | 50.8 x 152.4 | 2387 | 2.3 |
| Lattice | 1 | 2281 x 394 | / | 0.8 |
| Aluminum Stiffener | 1 | 44 x 42.5 | 2387 | 1.8 |
| Board | 8 | 22.2 x 287 | 1130 | 1.3 |
| T&G U Channel | 2 | 22.2 Opening | 1062 | 1.0 |
| Lattice U Channel | 2 | 13.23 Opening | 324 | 1.2 |
| Post Cap | 1 | New England Cap | / | / |
Product Parameter
| Product No. | FM-205 | Post to Post | 2438 mm |
| Fence Type | Semi Privacy | Net Weight | 37.65 Kg/Set |
| Material | PVC | Volume | 0.161 m³/Set |
| Above Ground | 1830 mm | Loading Qty | 422 Sets /40' Container |
| Under Ground | 863 mm |
Profiles
127mm x 127mm
5"x5" Post
50.8mm x 152.4mm
2"x6" Slot Rail
50.8mm x 152.4mm
2"x6" Lattice Rail
50.8mm x 88.9mm
2"x3-1/2" Lattice Rail
22.2mm x 287mm
7/8"x11.3" T&G
12.7mm Opening
1/2" Lattice U Channel
22.2mm Opening
7/8" U Channel
50.8mm x 50.8mm
2" x 2" Opening Square Lattice
Caps
3 most popular post caps are optional.
Pyramid Cap
New England Cap
Gothic Cap
Stiffeners
Post Stiffener ( For gate installation)
Bottom Rail Stiffener
Gate
Single Gate
Double Gate
For more information of profiles, caps, hardware, stiffeners, please check the accessory page, or feel free to contact us.
The Beauty of Lattice
Lattice top semi privacy fences are available in a variety of dimensions to match many style or architecture scheme. They can be used in a range of outdoor settings such as gardens, patios, or decks.
The combination of visual interest, privacy with openness, and versatility make semi privacy vinyl PVC lattice fences a popular choice for many homeowners looking to enhance the beauty of their outdoor space.
