PVC Semi Privacy Fence With Diagonal Lattice Top FM-206

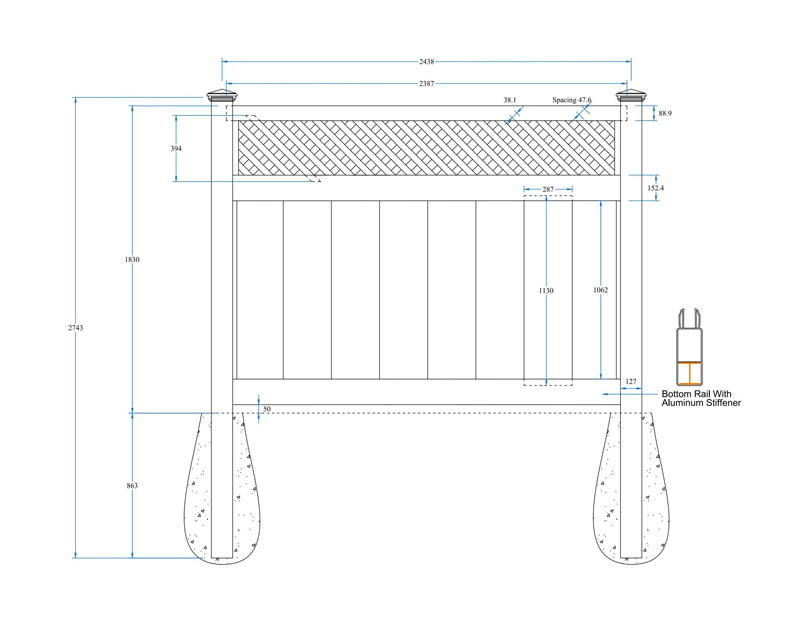

Drawing
1 Set Fence Includes:
Note: All Units in mm. 25.4mm = 1"
| Material | Piece | Section | Length | Thickness |
| Post | 1 | 127 x 127 | 2743 | 3.8 |
| Top Rail | 1 | 50.8 x 88.9 | 2387 | 2.0 |
| Middle Rail | 1 | 50.8 x 152.4 | 2387 | 2.0 |
| Bottom Rail | 1 | 50.8 x 152.4 | 2387 | 2.3 |
| Lattice | 1 | 2281 x 394 | / | 0.8 |
| Aluminum Stiffener | 1 | 44 x 42.5 | 2387 | 1.8 |
| Board | 8 | 22.2 x 287 | 1130 | 1.3 |
| T&G U Channel | 2 | 22.2 Opening | 1062 | 1.0 |
| Lattice U Channel | 2 | 13.23 Opening | 324 | 1.2 |
| Post Cap | 1 | New England Cap | / | / |
Product Parameter
| Product No. | FM-206 | Post to Post | 2438 mm |
| Fence Type | Semi Privacy | Net Weight | 37.79 Kg/Set |
| Material | PVC | Volume | 0.161 m³/Set |
| Above Ground | 1830 mm | Loading Qty | 422 Sets /40' Container |
| Under Ground | 863 mm |
Profiles
127mm x 127mm
5"x5" Post
50.8mm x 152.4mm
2"x6" Slot Rail
50.8mm x 152.4mm
2"x6" Lattice Rail
50.8mm x 88.9mm
2"x3-1/2" Lattice Rail
22.2mm x 287mm
7/8"x11.3" T&G
12.7mm Opening
1/2" Lattice U Channel
22.2mm Opening
7/8" U Channel
50.8mm x 50.8mm
2" x 2" Opening Square Lattice
Caps
3 most popular post caps are optional.
Pyramid Cap
New England Cap
Gothic Cap
Stiffeners
Post Stiffener ( For gate installation)
Bottom Rail Stiffener
Gates
Single Gate
Single Gate
For more information of profiles, caps, hardware, stiffeners, please check the accessory page, or feel free to contact us.
Dream Backyard
A dream backyard is a personalized outdoor space that meets the specific needs and desires of the homeowner. It's a space that is both functional and beautiful, designed to create a relaxing and enjoyable atmosphere. A dream backyard might include features such as a patio or deck, a garden or landscaping, and perhaps even a play area for children or pets. Then, as a dream backyard, first of all, we need to choose a beautiful, stylish fence, that reflects the homeowner's personality and lifestyle, provides a safety and beautiful place to unwind, entertain, and enjoy the outdoors. The beauty of a semi privacy diagonal fence is a matter of personal taste, which offers several aesthetic benefits for those who appreciate its unique design and modern appeal. It will be one of the most important elements of a perfect dream backyard.
