3 Rail PVC Vinyl Post and Rail Fence FM-303 For Ranch, Paddock, Farm and Horses

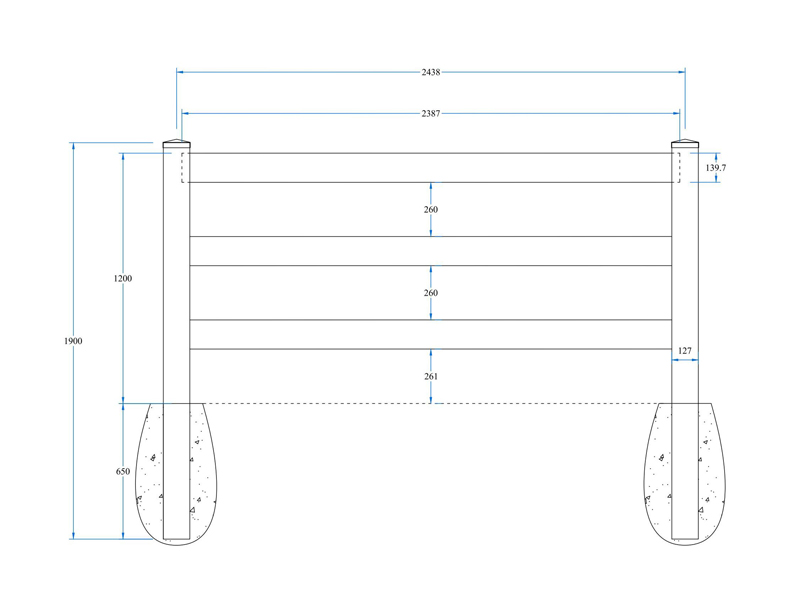

Drawing
1 Set Fence Includes:
Note: All Units in mm. 25.4mm = 1"
| Material | Piece | Section | Length | Thickness |
| Post | 1 | 127 x 127 | 1900 | 3.8 |
| Rail | 3 | 38.1 x 139.7 | 2387 | 2.0 |
| Post Cap | 1 | External Flat Cap | / | / |
Product Parameter
| Product No. | FM-303 | Post to Post | 2438 mm |
| Fence Type | Horse Fence | Net Weight | 14.09 Kg/Set |
| Material | PVC | Volume | 0.069 m³/Set |
| Above Ground | 1200 mm | Loading Qty | 985 Sets /40' Container |
| Under Ground | 650 mm |
Profiles
127mm x 127mm
5"x5" Post
38.1mm x 139.7mm
1-1/2"x5-1/2" Rib Rail
FenceMaster also provides 2”x6” rail for customers to choose.
Caps
The external pyramid post cap is the most popular, especially for horse and farm fencing. However, if you find that your horse will bite the pyramid external post cap, then you can choose the pyramid internal post cap, which prevents the post cap from being damaged by the horses. The new England cap and Gothic cap are optional and are mostly used for residential or other properties.
Internal Cap
External Cap
New England Cap
Gothic Cap
Stiffeners
Aluminum Post Stiffener is used to strengthen the fixing screws when following the fencing gates. If the stiffener is filled with concrete, the gates will become more durable, which is also highly recommended.
If your horse farm may have large machinery in and out, then you need to customize a set of wider double gates. You can consult our sales staff for more details.
Working Temperature
FM Project at Middle East
FM Project at Mongolia
The working temperature of PVC horse fences can vary depending on the specific formulation and quality of the PVC material. Generally, PVC fences can withstand temperatures ranging from -20 degrees Celsius (-4 degrees Fahrenheit) to 50 degrees Celsius (122 degrees Fahrenheit) without any significant degradation or loss of structural integrity. However, exposure to extreme temperatures for extended periods can cause the PVC material to become brittle or warp, which can affect the fence's overall durability and lifespan. Therefore, it's essential to choose high-quality PVC materials and install the fence in areas that are not exposed to extreme temperatures or prolonged sunlight.
